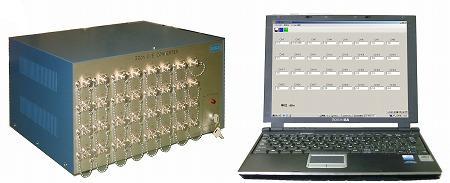

Light power monitor KOE-32

System for the measurement of the finished product of the Splitter. Temperature test and record the measurement data for a long time. Depending upon the intended use control software customization.


O/E converter design

ch 1 – 32ch
Optical output range 0dBm – -60dBm
Input wavelength range 1300 – 1600nm
Accuracy +-5%
External size(KOE-32) W330mm x H170mm x D250mm
Connector type Customer specified

Software Specifications

Measurement ch 1 – 32ch
Light output Real-time display
Measuring method Each/Total
Calibration Setting for each channel
The format of saved data CSV
